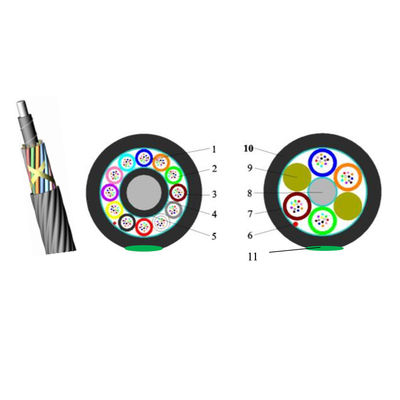

Modèle
|
|
GYCFTY
|
|
|
Compte de fibre
|
|
96
|
|
|
Compte de tube
|
|
8
|
|
|
OD (millimètre) |
Câble
|
7.0±0.3
|
|
|
|
Tube lâche
|
1.6±0.05
|
|
|
Poids nominal (Kg/Km)
|
|
44
|
|
|
De tension maximal (N) |
À court terme
|
800
|
|
|
|
Long terme
|
400
|
|
|
Max. Crushing
Résistance (N/100 millimètres) |
À court terme
|
450
|
|
|
|
Long terme
|
100
|
|
|
Composé de gaine
|
|
PE
|
|
|
Min. Bending
Rayon (millimètres) |
Dynamique
|
20D
|
|
|
|
Charge statique
|
10D
|
|
|

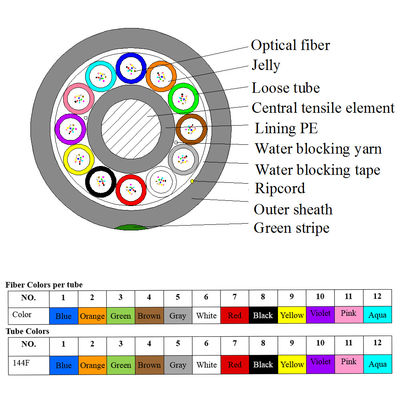

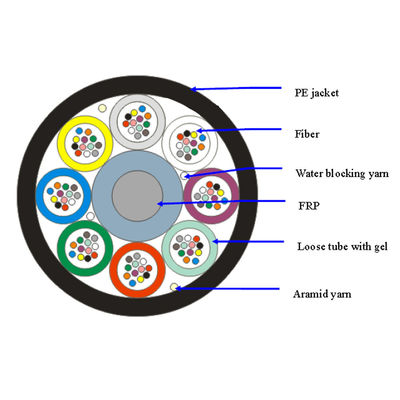

Porteur central
|
|
FRP
|
|
|
Couleur
|
|
Noir
|
|
|
Protection de l'environnement
|
|
RoHS CONFORME
|
|
|
Température ambiante |
Stockage ou transport
|
-40 | 70℃
|
|
|
|
Opération
|
-20 ~60℃
|
|
|
|
Installation
|
-20 | 60℃
|
|
|
Caractéristiques optiques
|
|
|
|
|
|
|
||||||
|
Type de fibre
|
Type de fibre
|
|
|
|
Efficace
modèle largeur de bande |
Rayon de cintrage minimum
|
||||||
|
Conditions
|
1310/1550nm
|
|
850/1300nm
|
|
850/1300nm
|
/
|
||||||
|
|
Typique
|
Maximum
|
Typique
|
Maximum
|
850/1300nm
|
/
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Unité
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
millimètre
|
||||||
|
G652D
|
0.36/0.22
|
0.4/0.3
|
---
|
---
|
---
|
16
|
||||||
|
G657A1
|
0.36/0.22
|
0.4/0.3
|
---
|
---
|
---
|
10
|
||||||
|
G657A2
|
0.36/0.22
|
0.4/0.3
|
---
|
---
|
---
|
7,5
|
||||||
|
50/125
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
30
|
||||||
|
62.5/125
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
30
|
||||||
|
OM3
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
30
|
||||||
|
OM4
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
30
|
||||||
|
BI-OM3
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
7,5
|
||||||
|
BI-OM4
|
---
|
---
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
7,5
|
||||||
